Reversing Rear PTO Shafts

LX008630
LX008630-UN-15AUG94

LX012500
LX012500-UN-29JAN96

LX012501
LX012501-UN-29JAN96

LX012502
LX012502-UN-29JAN96

One end of the PTO stub shaft has 6 splines for operating at 540 rpm, and the other end has 21 splines for operating at 1000 rpm. Clean stub shaft thoroughly before installing.

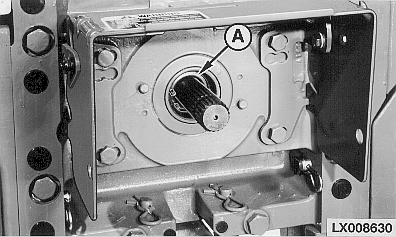

  1. Remove snap ring (A) and pull out stub shaft.

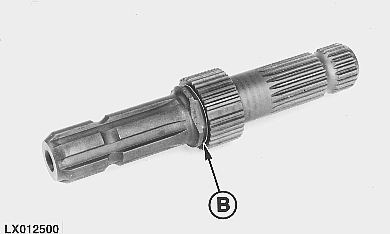

  2. Clean stub shaft thoroughly and coat it with grease. Groove (B) facilitates installation of snap ring.

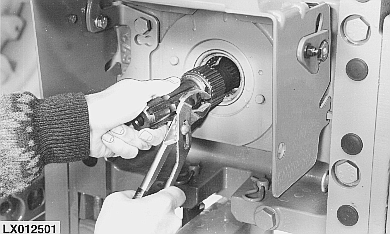

  3. Insert stub shaft in PTO housing until snap ring (A) fits into the groove.

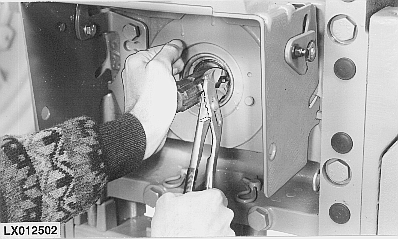

  4. Install snap ring.

NOTE: A flattened area on the stub shaft facilitates removal and installation of snap ring.
